Q1

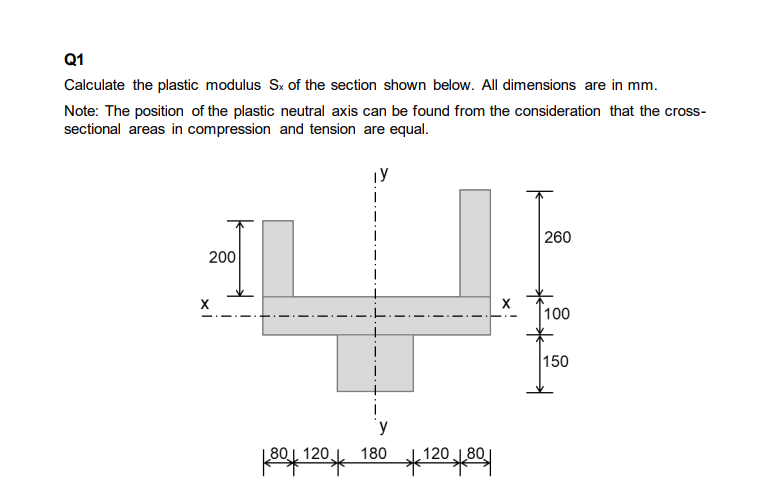

Calculate the plastic modulus Sx of the section shown below. All dimensions are in mm.

Note: The position of the plastic neutral axis can be found from the consideration that the cross-

sectional areas in compression and tension are equal.

200

X

IY

80120 180

120|80|

X

260

100

150
