Q11 Part A

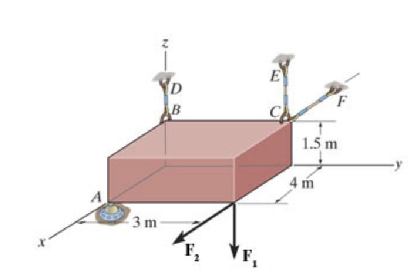

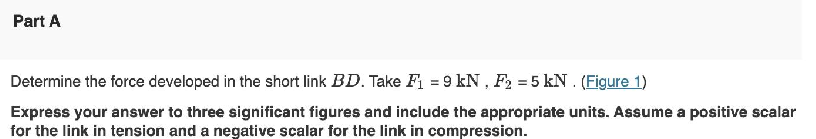

Determine the force developed in the short link BD. Take F₁ = 9 kN, F₂ = 5 kN. (Figure 1)

Express your answer to three significant figures and include the appropriate units. Assume a positive scalarfor the link in tension and a negative scalar for the link in compression. Part B

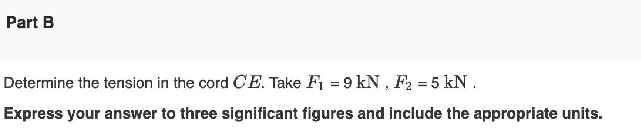

Determine the tension in the cord CE. Take F₁ = 9 kN, F₂ = 5 kN.

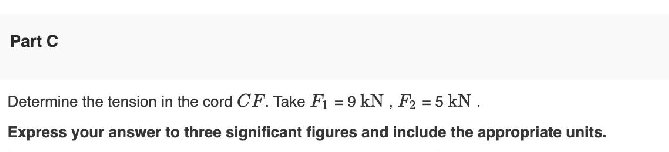

Express your answer to three significant figures and include the appropriate units. Part CDetermine the tension in the cord CF. Take F₁ = 9 kN, F₂ = 5 kN.Express your answer to three significant figures and include the appropriate units.

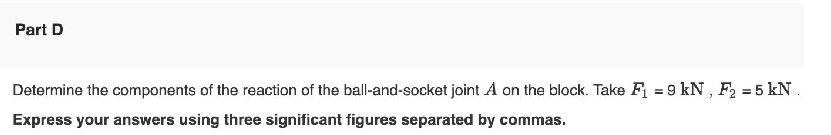

Part DDetermine the components of the reaction of the ball-and-socket joint A on the block. Take F₁ = 9 kN, F₂ = 5 kN.Express your answers using three significant figures separated by commas.
