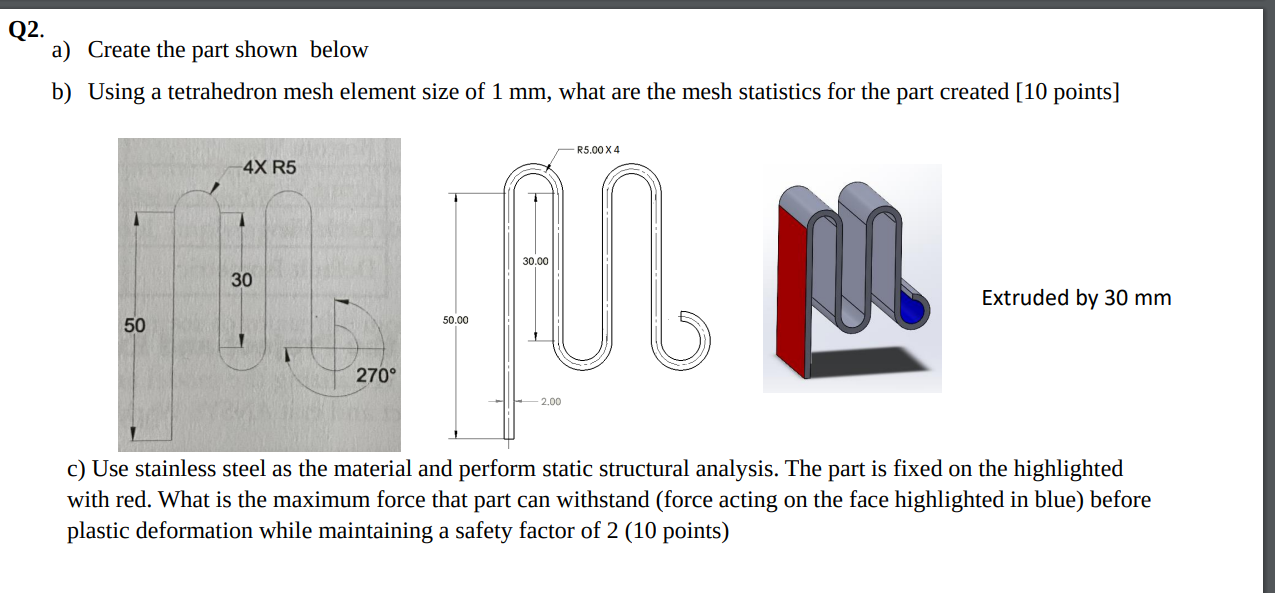

Q2.

a) Create the part shown below

b) Using a tetrahedron mesh element size of 1 mm, what are the mesh statistics for the part created [10 points]

50

4X R5

30

270°

50.00

30.00

-2.00

-R5.00 X 4

Extruded by 30 mm

c) Use stainless steel as the material and perform static structural analysis. The part is fixed on the highlighted

with red. What is the maximum force that part can withstand (force acting on the face highlighted in blue) before

plastic deformation while maintaining a safety factor of 2 (10 points)
