Q2 Draw the vectors starting at the black dots. The location and orientation of the vectors will be graded.

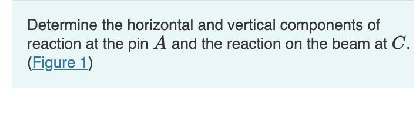

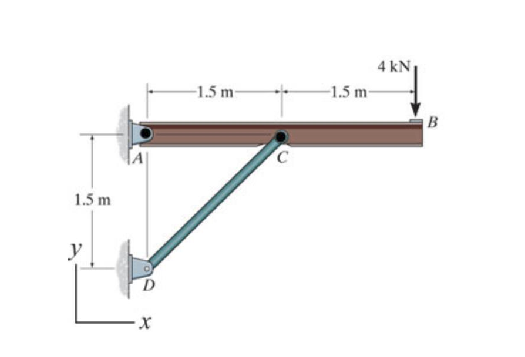

Determine the horizontal and vertical components ofreaction at the pin A and the reaction on the beam at C.(Figure 1) Select the elements from the list and add them to the canvas setting the appropriate attributes.
