Question

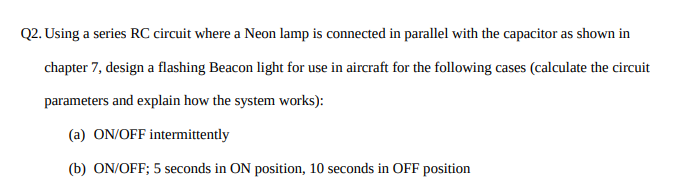

Q2. Using a series RC circuit where a Neon lamp is connected in parallel with the capacitor as shown in

chapter 7, design a flashing Beacon light for use in aircraft for the following cases (calculate the circuit

parameters and explain how the system works):

(a) ON/OFF intermittently

(b) ON/OFF; 5 seconds in ON position, 10 seconds in OFF position

Question image 1
