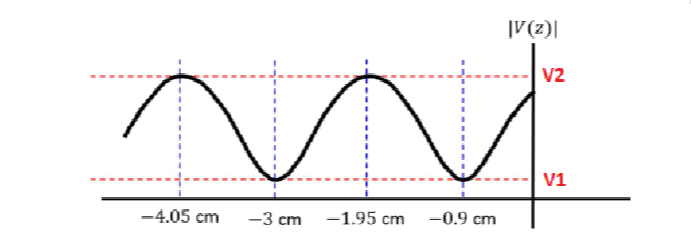

Q3) The results of a slotted-line experiment are plotted in the following figure. The length of the line is & cm; its characteristic impedance is Z0 Q.

a) The reflection coefficient at the load. b) The load impedance. c) The input impedance. d) The reflection coefficient at the generator terminals.
