Question

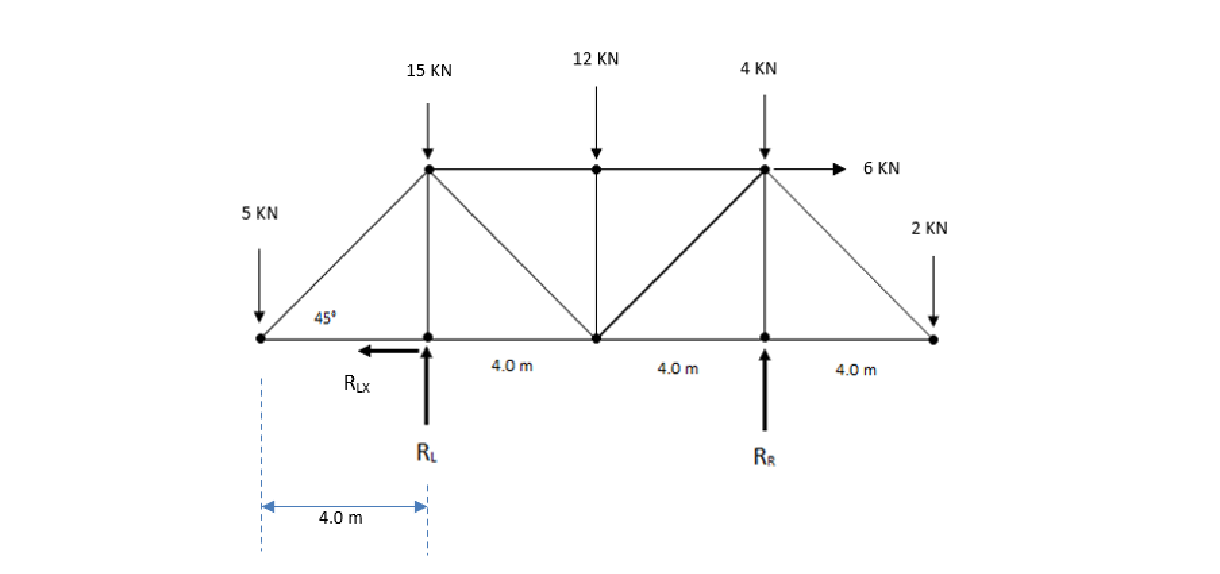

Q3).For the truss shown below use the method of joints to determine the type and magnitude of the forces in all members. Determine the magnitude and direction of all reaction

forces.

Question image 1Question image 2
