Question

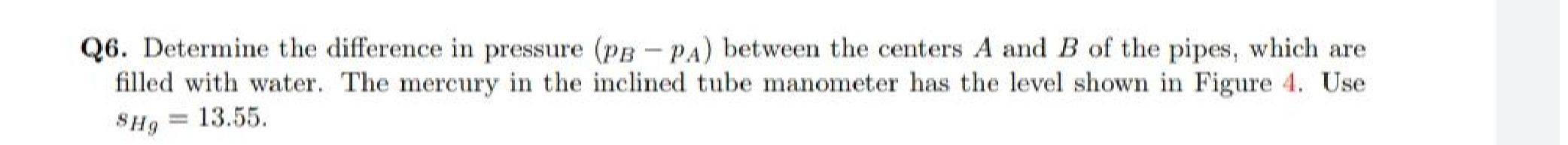

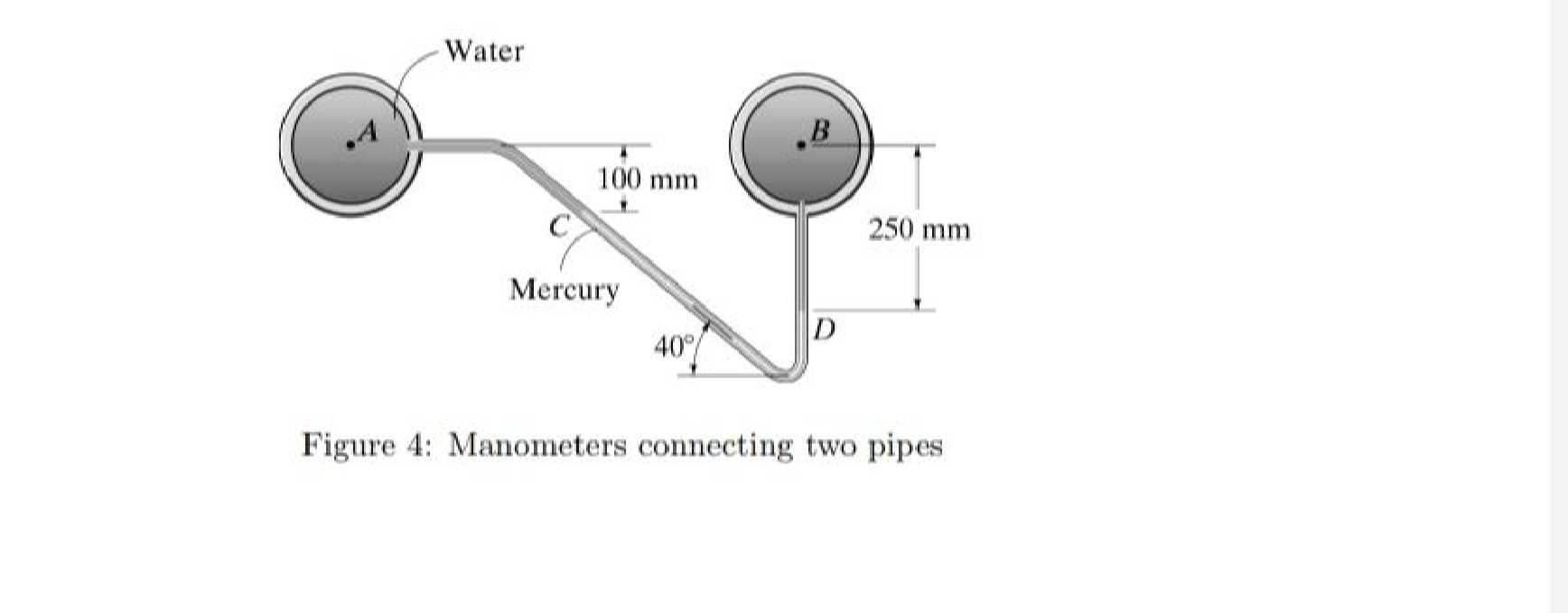

Q6. Determine the difference in pressure (PB - PA) between the centers A and B of the pipes, which are filled with water. The mercury in the inclined tube manometer

has the level shown in Figure 4. UseSH9:13.55

Question image 1Question image 2
