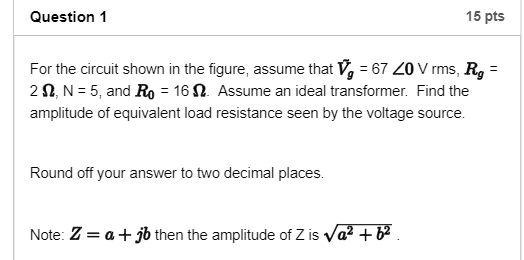

Question 1

For the circuit shown in the figure, assume that V = 67 20 Vrms, Rg = 2 , N = 5, and R₁ = 16. Assume an ideal transformer. Find the

amplitude of equivalent load resistance seen by the voltage source. Round off your answer to two decimal places.

Note: Z = a + jb then the amplitude of Z is √a² +6²

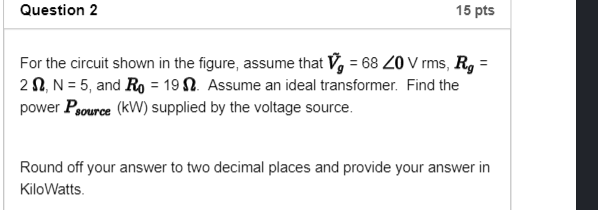

Question 2

For the circuit shown in the figure, assume that V = 68 20 V rms, Rg = 22, N = 5, and R₁ = 19. Assume an ideal transformer. Find the

power Psource (KW) supplied by the voltage source. Round off your answer to two decimal places and provide your answer in Kilowatts.

Question 3

For the circuit shown in the figure, assume that V₂ = 63 20 V rms, R = 12, N= 3, and Ro = 172. Assume an ideal transformer. Find the power Pload (kW) consumed by Ro

Round off your answer to two decimal places and provide your answer in Kilowatts.
