Question

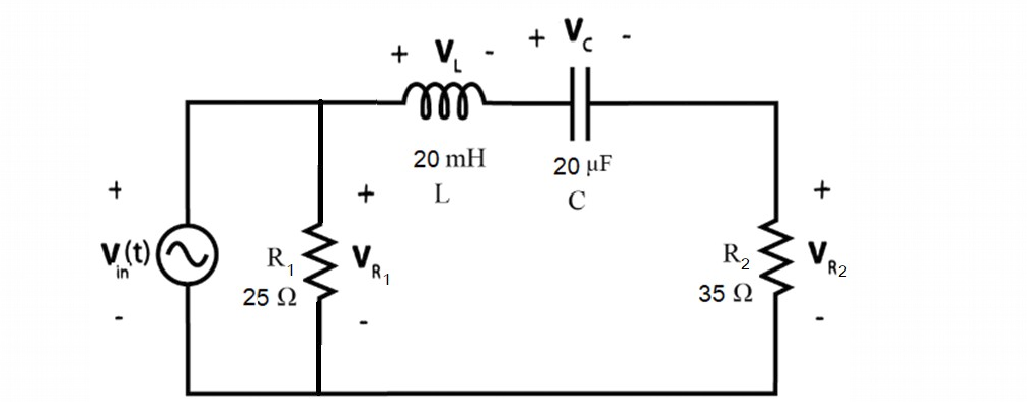

Question 2: For the circuit shown Given V E (t)=10 cos (2000 t)V. a) Calculate capacitors and inductors Impedances Zc and Z, b) Find the phasors voltage VR1, VR2, VL,

Vc and Vin. c) Find the time representation of Vr2 (t).
