Question

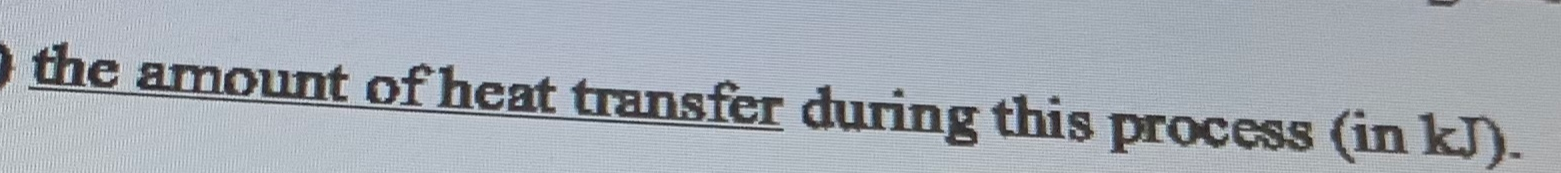

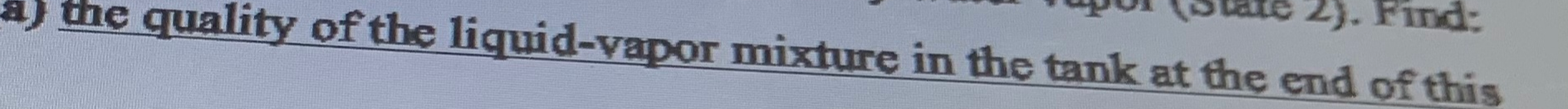

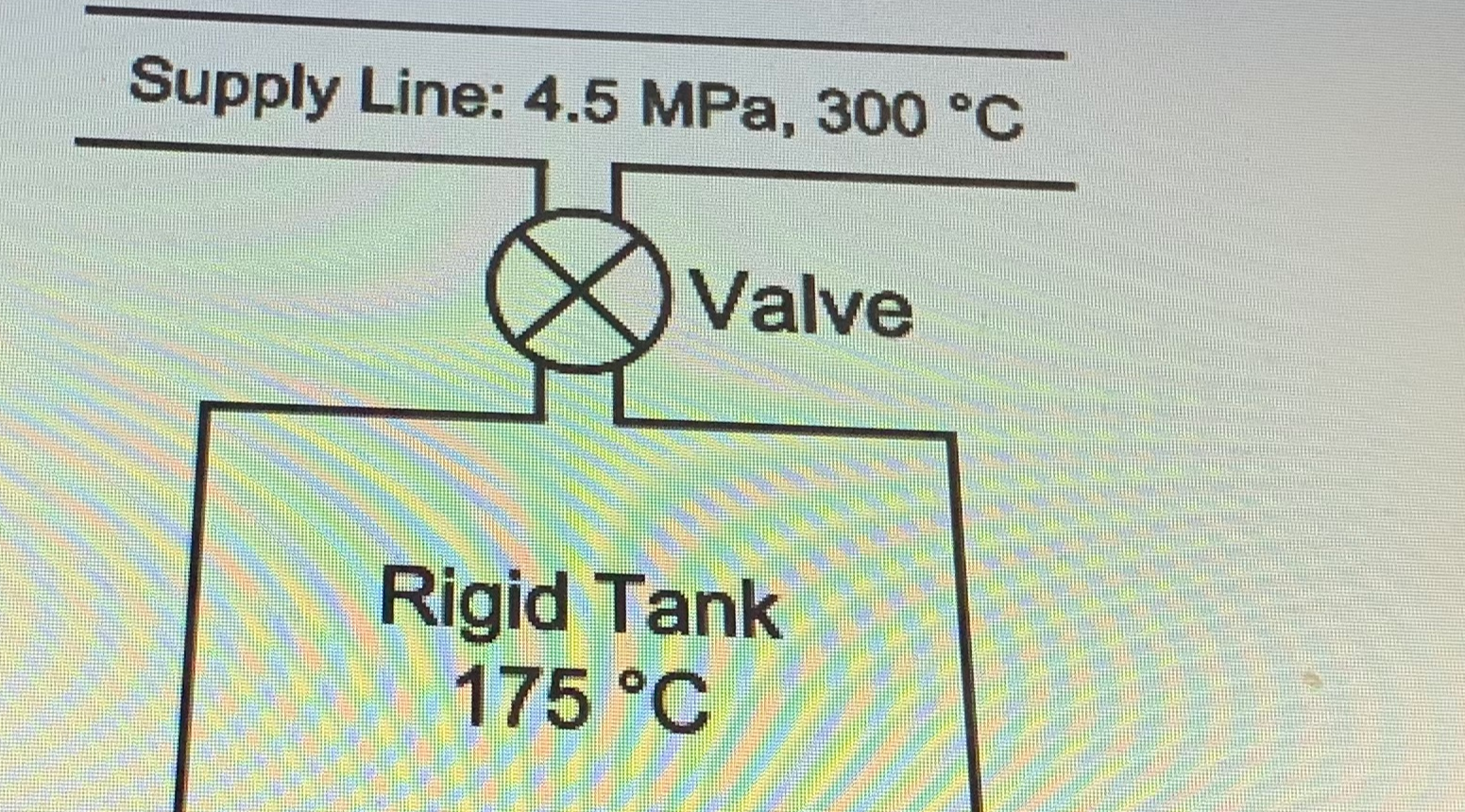

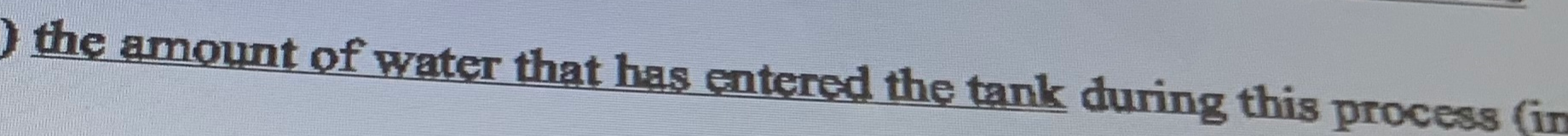

Question 5. A 0.1 m³ rigid tank initially contains saturated water vapor at 175 °C(State 1). The tank is connected by a valve to a supply line that carries water at 4.5MPa and 300 °C. Now the valve is opened, and water is allowed to enter the tank from the supply line. Heat transfer occurs with the surroundings such that the temperature in the tank remains constant at 175 °C at all times. The valve is closed when it is observed that one-half of the volume of the tank is occupied by liquid water and the other half of the volume is occupied by water vapor (State 2). Find:16 marks] (a) the quality of the 2). Find:the quality of the liquid-vapor mixture in the tank at the end of this process (x2). ) the amount of water that has entered the tank during this process (in the amount of heat transfer during this process (in kJ).

Question image 1Question image 2Question image 3Question image 4Question image 5Question image 6
