Question

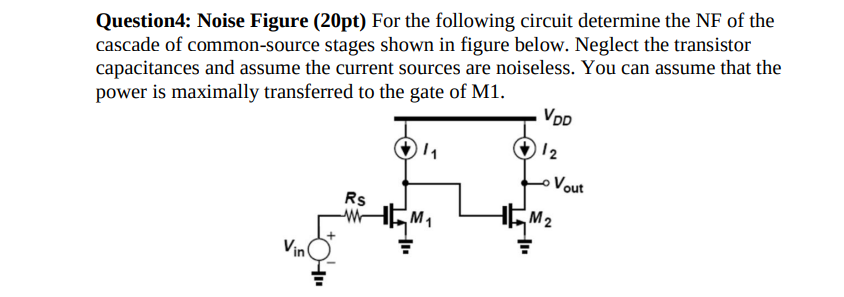

Question4: Noise Figure (20pt) For the following circuit determine the NF of the cascade of common-source stages shown in figure below. Neglect the transistor capacitances and assume the current sources are

noiseless. You can assume that the power is maximally transferred to the gate of M1. Vin Rs W M₁ VDD 12 M₂ Vout

Question image 1
