Question

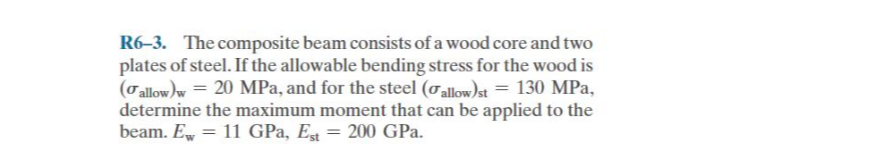

R6-3. The composite beam consists of a wood core and two plates of steel. If the allowable bending stress for the wood is(sigma allow)w = 20 MPa, and for the steel (sigma allow)st = 130 MPa,determine the maximum moment that can be applied to thebeam. E = 11 GPa, Est = 200 GPa.

Question image 1
