3.28

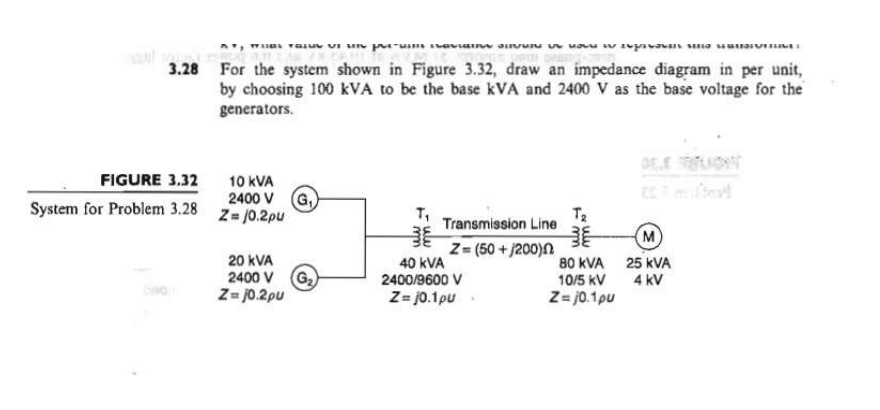

FIGURE 3.32

System for Problem 3.28

wilal rajut si un prim abiaine sin in you in represente aus

For the system shown in Figure 3.32, draw an impedance diagram in per unit,

by choosing 100 kVA to be the base kVA and 2400 V as the base voltage for the

generators.

10 KVA

2400 V

Z=10.2pu

(G₁

20 kVA

2400 V (G₂)

Z=j0.2pu

T₁

Transmission Line

Z= (50+/200)

40 KVA

2400/9600 V

Z=j0.1pu

T₂

80 KVA

10/5 KV

Z=j0.1pu

(M)

25 KVA

4 kV
