Statement of the Problem:

b)

manually!!)

1)

2)

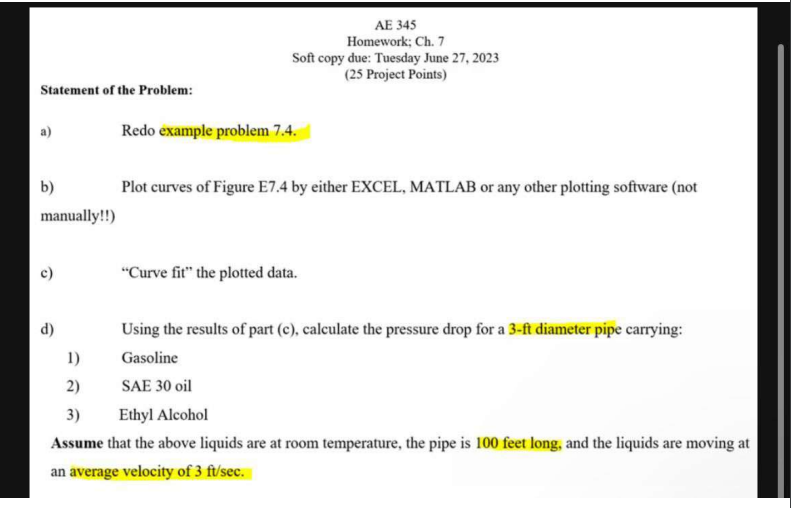

AE 345

Homework; Ch. 7

Soft copy due: Tuesday June 27, 2023

(25 Project Points)

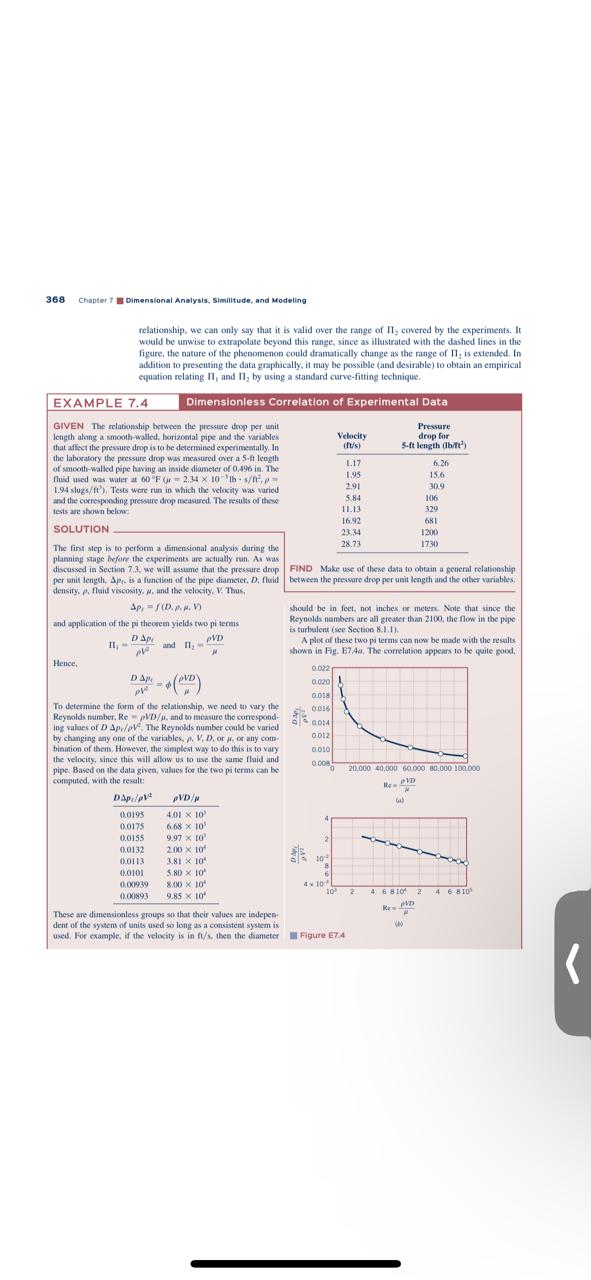

Redo example problem 7.4.

Plot curves of Figure E7.4 by either EXCEL, MATLAB or any other plotting software (not

"Curve fit" the plotted data.

Using the results of part (c), calculate the pressure drop for a 3-ft diameter pipe carrying:

Gasoline

SAE 30 oil

3)

Ethyl Alcohol

Assume that the above liquids are at room temperature, the pipe is 100 feet long, and the liquids are moving at

an average velocity of 3 ft/sec.
