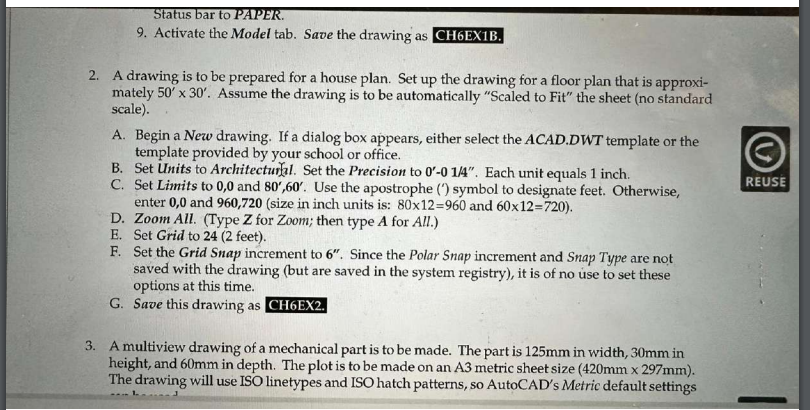

Status bar to PAPER.

9. Activate the Model tab. Save the drawing as CH6EX1B.

2. A drawing is to be prepared for a house plan. Set up the drawing for a floor plan that is approxi-

mately 50' x 30'. Assume the drawing is to be automatically "Scaled to Fit" the sheet (no standard

scale).

A. Begin a New drawing. If a dialog box appears, either select the ACAD.DWT template or the

template provided by your school or office.

B.

C.

Set Units to Architectural. Set the Precision to 0-0 1/4". Each unit equals 1 inch.

Set Limits to 0,0 and 80',60'. Use the apostrophe () symbol to designate feet. Otherwise,

enter 0,0 and 960,720 (size in inch units is: 80x12=960 and 60x12=720).

D.

Zoom All. (Type Z for Zoom; then type A for All.)

E. Set Grid to 24 (2 feet).

F. Set the Grid Snap increment to 6". Since the Polar Snap increment and Snap Type are not

saved with the drawing (but are saved in the system registry), it is of no use to set these

options at this time.

G. Save this drawing as CH6EX2.

3. A multiview drawing of a mechanical part is to be made. The part is 125mm in width, 30mm in

height, and 60mm in depth. The plot is to be made on an A3 metric sheet size (420mm x 297mm).

The drawing will use ISO linetypes and ISO hatch patterns, so AutoCAD's Metric default settings
