Question

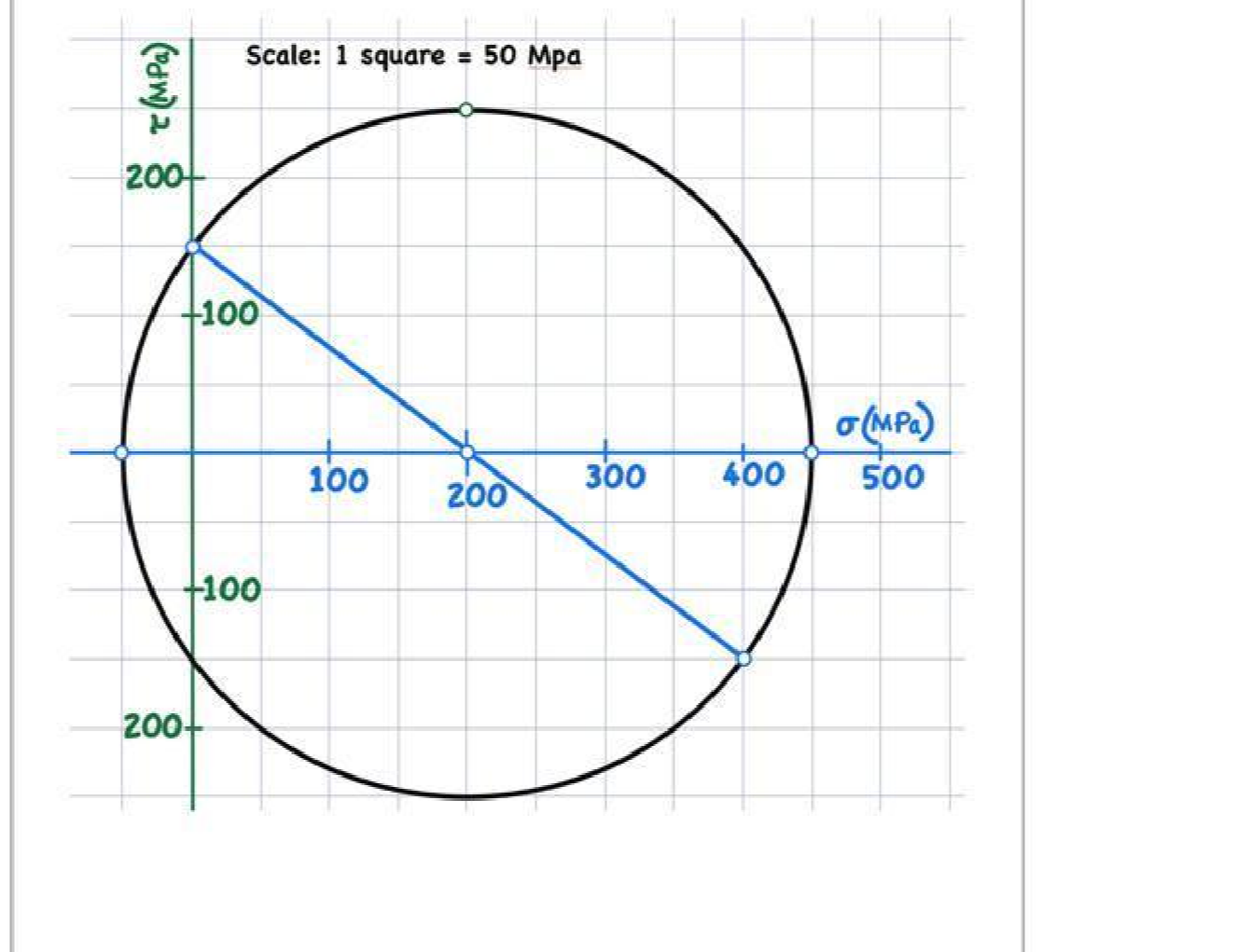

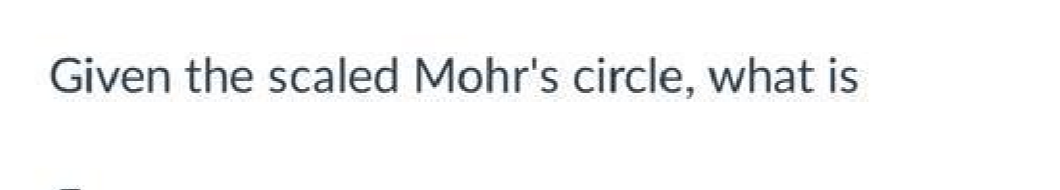

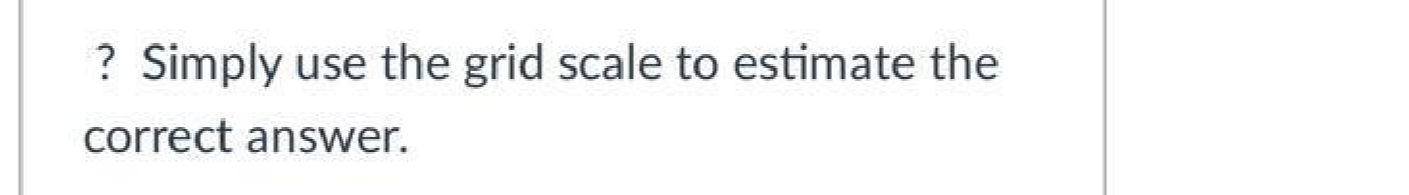

\text { Given the scaled Mohr's circle, what is } \sigma_{\max } ? Simply use the grid scale to estimate the correct answer.
