Question

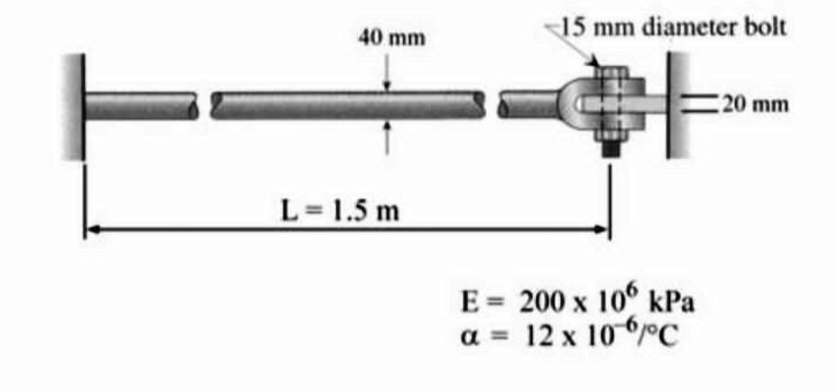

The 1.5 m long solid bar is simply supported at the right hand end, but rigidly supported at the left hand end. The temperature will begin to rise. For the connection, the allowable bolt shear stress is 320 MPa. What temperature rise will cause the bar to buckle? b)What temperature rise will cause the bolt to fail in shear? Given that the temperature will rise sufficiently for either, what mode of failure will occur first for this structure?
