Question

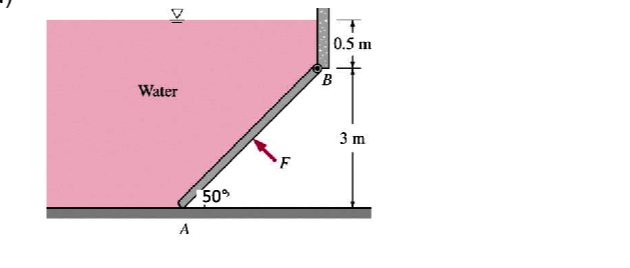

The 150 kg, 3 meter wide rectangular gate shown in the figure is hinged at B and leans against the floor at A making an angle of 50° with the horizontal. The gate is to be opened from its lower edge by applying a normal force at its center. Determine the minimum force F required to open the water gate (Ans. 288.5 kN)
Question image 1Question image 2
