Question

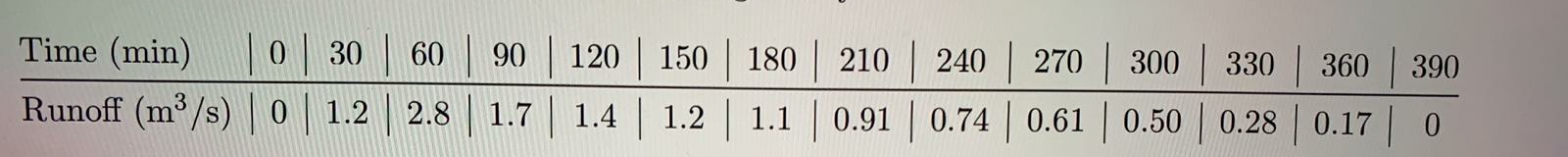

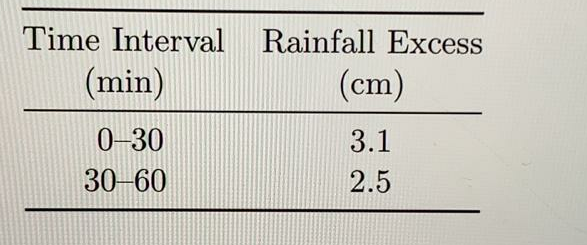

The 30-min unit hydrograph for a catchment is given by Estimate the peak runoff rate resulting from the following 60-min rainfall event:

Question image 1Question image 2Question image 3Question image 4
