Question

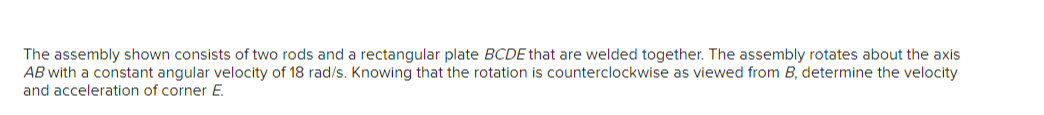

The assembly shown consists of two rods and a rectangular plate BCDE that are welded together. The assembly rotates about the axis AB with a constant angular velocity of 18

rad/s. Knowing that the rotation is counterclockwise as viewed from B, determine the velocity and acceleration of corner E. The velocity of corner E is __________ The acceleration of corner E is _________

Question image 1Question image 2Question image 3Question image 4
