Question

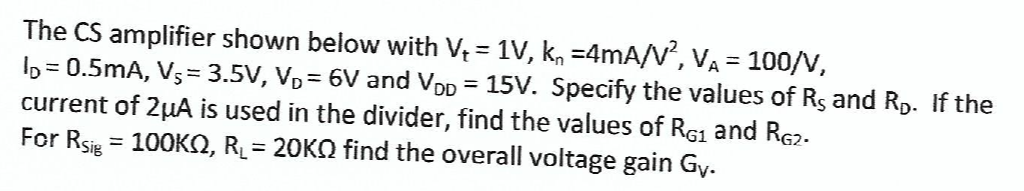

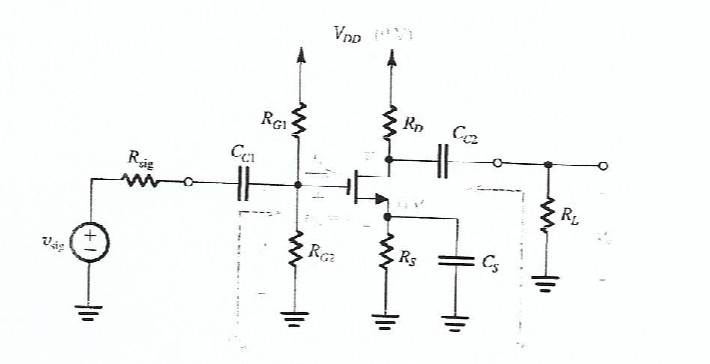

The CS amplifier shown below with V = 1V, k, =4mA/V', VA = 100/N,Ib = 0.5mA, V;= 3.5V, Vp= 6V and VDD = 15V. Specify the values of Rs and

Rp. If the current of 2µA is used in the divider, find the values of RG1 and RG2-For Rsig = 100KQ, R_= 20KQ find the overall voltage gain Gy.

Fig: 1

Fig: 2
