Question

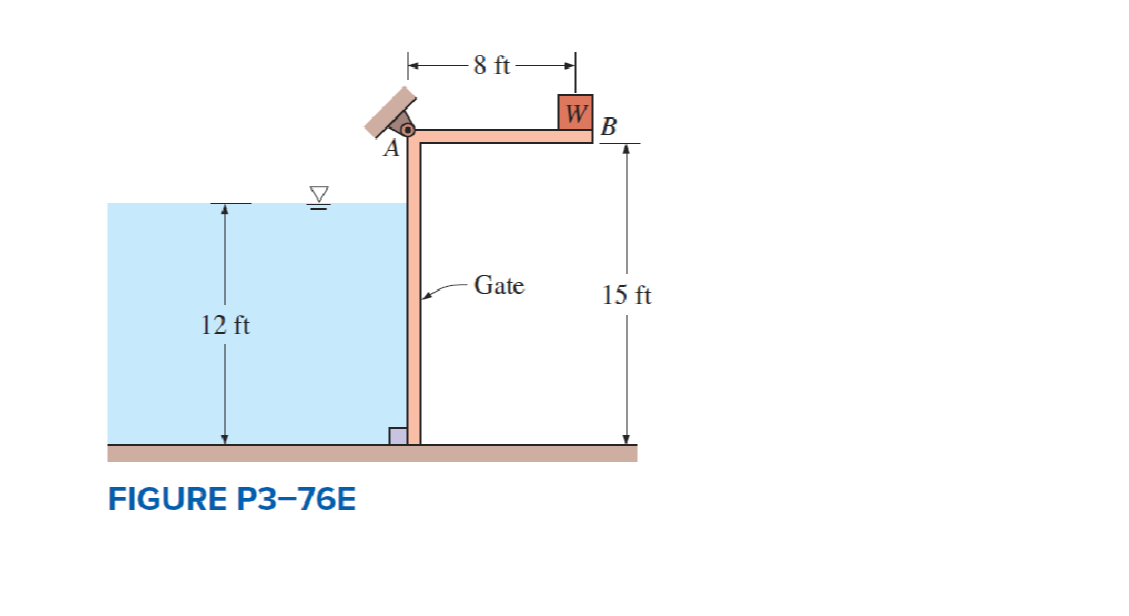

The flow of water from a reservoir is controlled by a 5-ft-wide L-shaped gate hinged at point A, as shown in Fig. P3–76E. If it is desired that the gate

open when the water height is 12 ft, determine the mass of the required weight W.Answer: 30,900 Ibm

Question image 1Question image 2
