Question

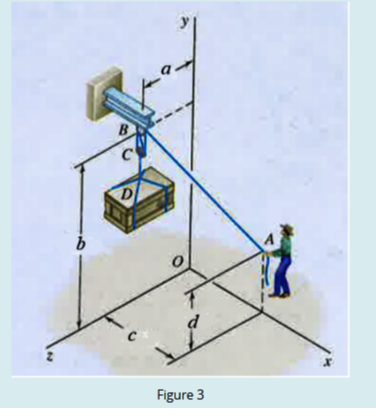

The man shown in Figure 3 uses a block and a tackle together with a hook attached at B to lift the heavy crate. If the moment of force in cable AB about y and z axes are 120 Nm and 472 Nm respectively determine the distance a. Take b=4.97 m, c = 2.22 m and d = 1.68 m.

Question image 1Question image 2
