Question

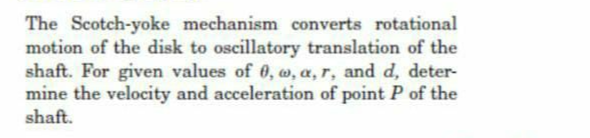

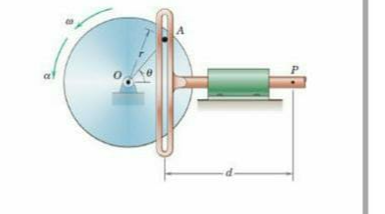

The Scotch-yoke mechanism converts rotational motion of the disk to oscillatory translation of the shaft. For given values of 6, w, a, r, and d, deter-mine the velocity and acceleration

of point P of the shaft.
