Question

.The shaft shown in the figure is machined from AISI 1040 CD steel. The shaft rotates at 1600rpm and is supported in rolling bearings at A and B. The applied

forces are F1 = 2500 Ibf andF2 = 1000 lbf. Determine the minimum fatigue factor of safety based on achieving infinite life.If infinite life is not predicted, estimate the number of cycles to failure. Also check for yielding.

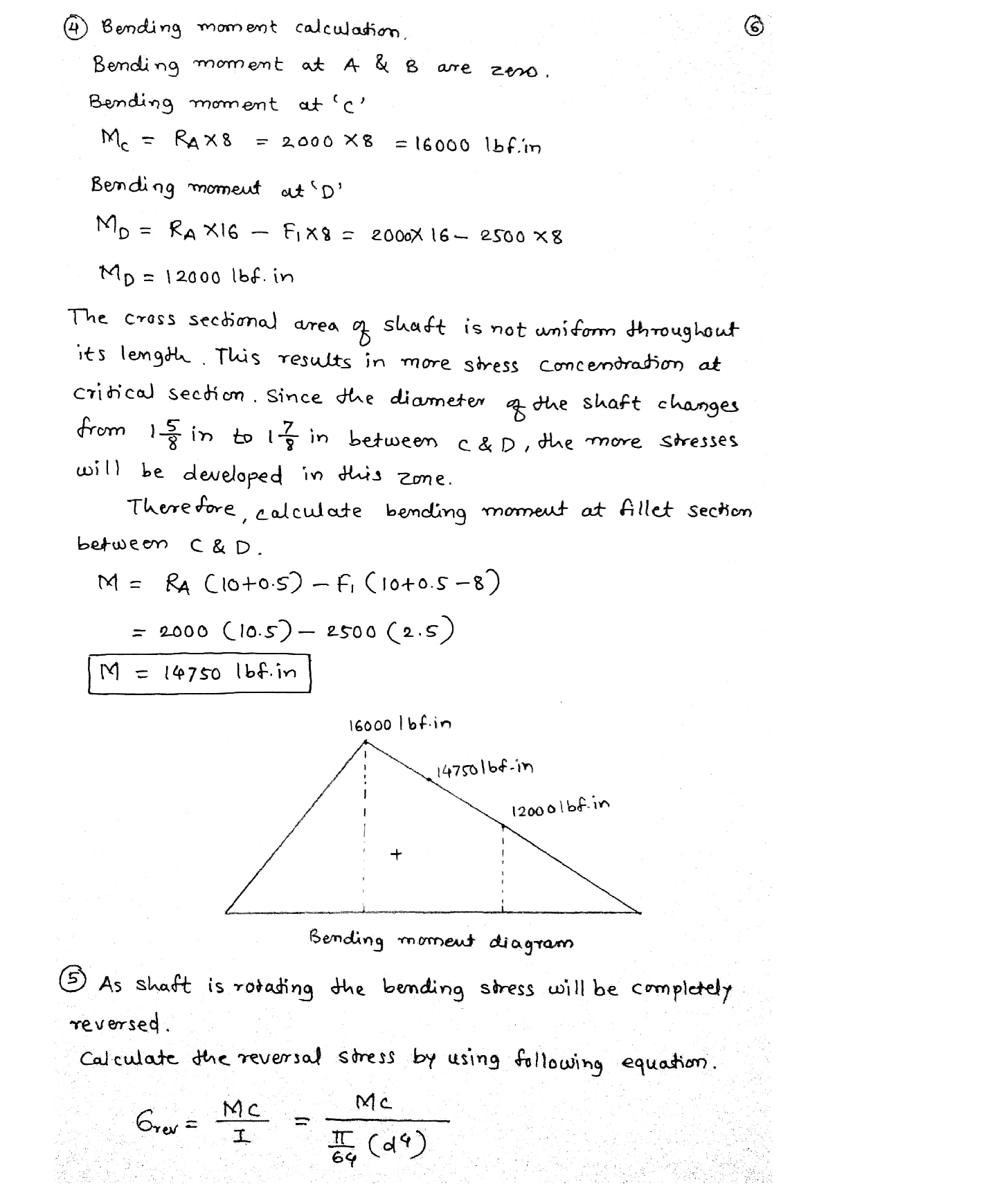

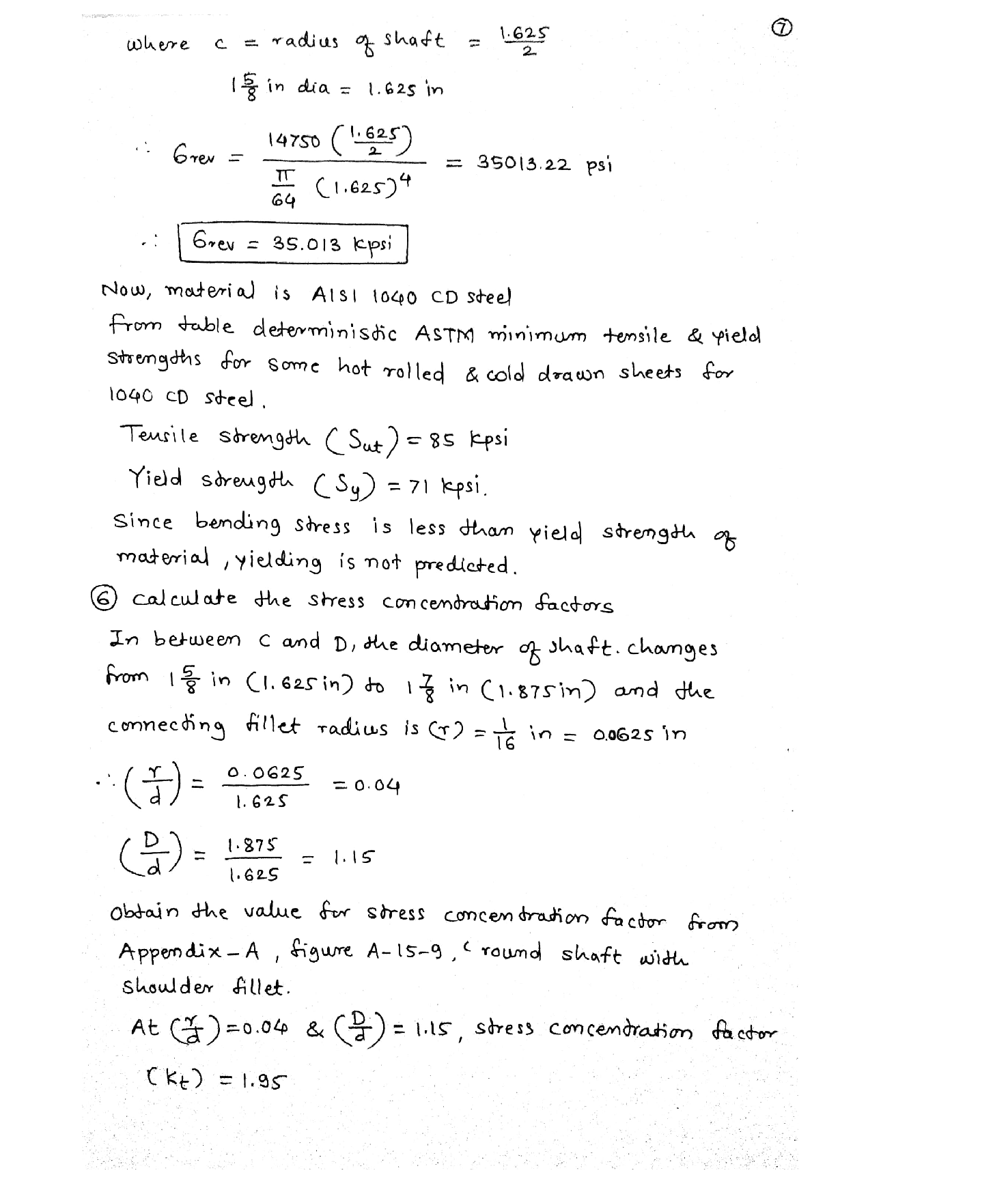

Question image 1Question image 2
