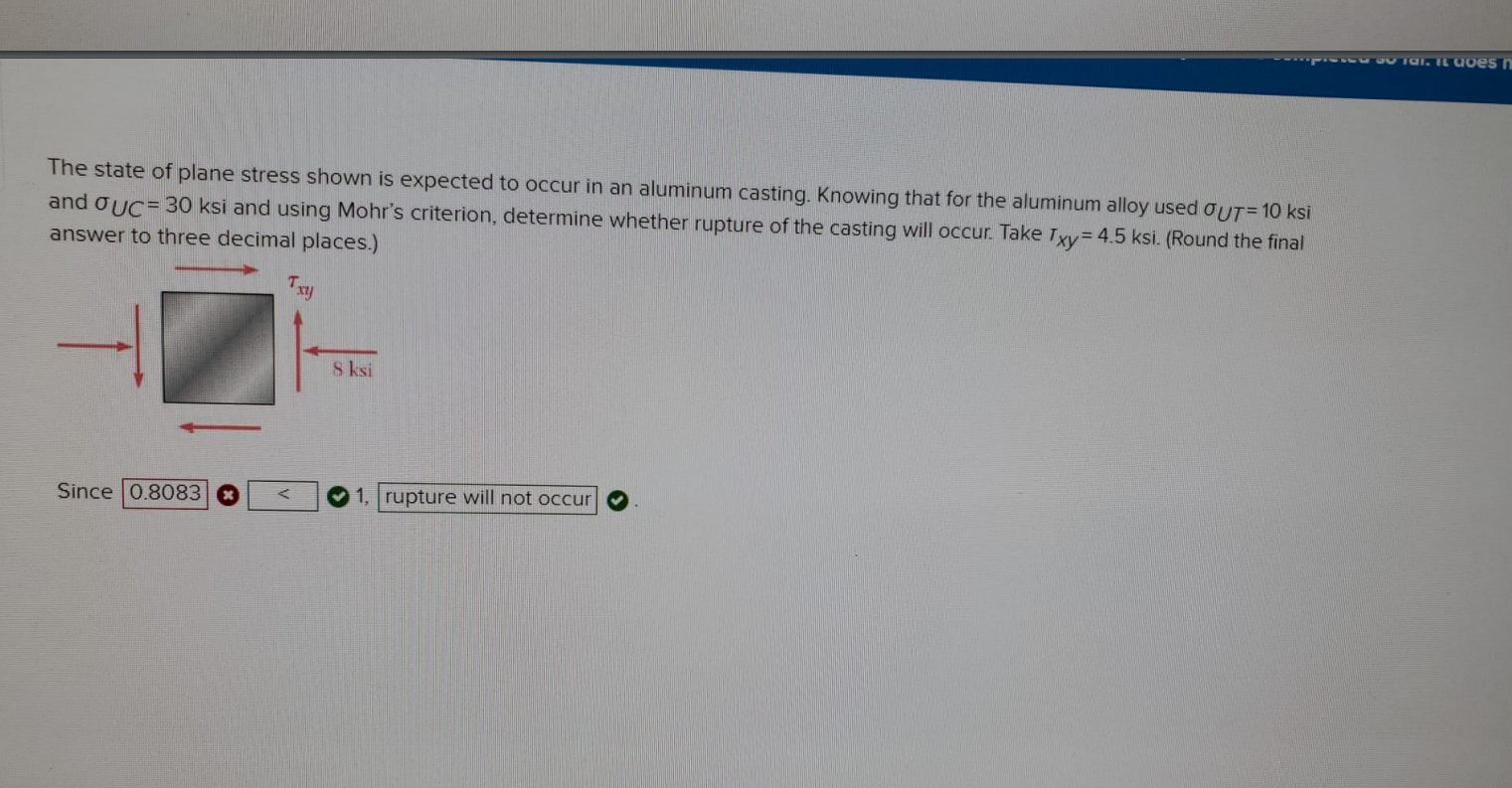

The state of plane stress shown is expected to occur in an aluminum casting. Knowing that for the aluminum alloy used OUT= 10 ksi

and UC = 30 ksi and using Mohr's criterion, determine whether rupture of the casting will occur. Take Txy = 4.5 ksi. (Round the final

answer to three decimal places.)

Since 0.8083

Txy

8 ksi

1, rupture will not occur
