Question

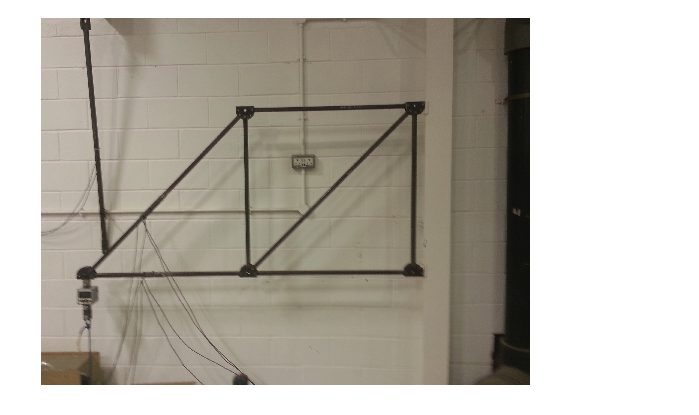

The truss built in the Civil and Structural Engineering Laboratory is to be subjected to a static load as mentioned in the photo and model below. Using the method of joints, determine the forces in members AB,AE, BE, BC, DE and CE. Indicate whether the members are in tension or compression.

Question image 1Question image 2
