Question

The x and y components of Force F are given as follows: Fx = Fcos(angle) Fy = Fsin(angle) Where, Fx is x component of Force F (N) Fy is y

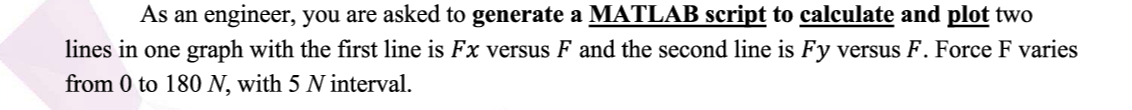

component of Force F. (N) Angleis angle on horizontal plane (degrees) As an engineer, you are asked to generate a MATLAB script to calculate and plot two lines in one graph with the first line is Fx versus F and the second line is Fy versus F. Force F varies from 0 to 180 N, with 5 N interval.

Question image 1Question image 2Question image 3Question image 4Question image 5Question image 6Question image 7Question image 8
