Question

Two steel plates with S,400 MPa are attached by transverse-loaded fillet welds,as shown in Figure 11.7d. B Each weld is 100 mm long. E70 series welding rods are used, and

good welding practice is followed. What minimum leg length must be use dif a force of 150 kN is to be applied with a safety factor of 3.5?

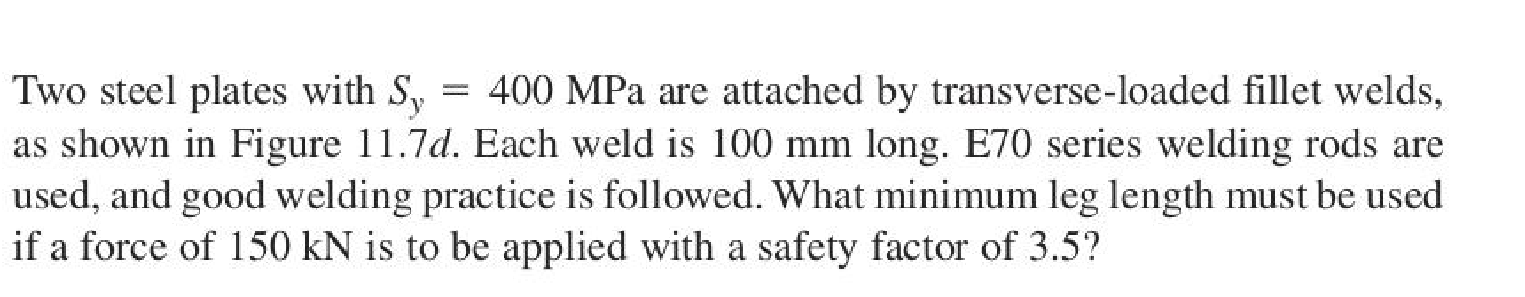

Question image 1
