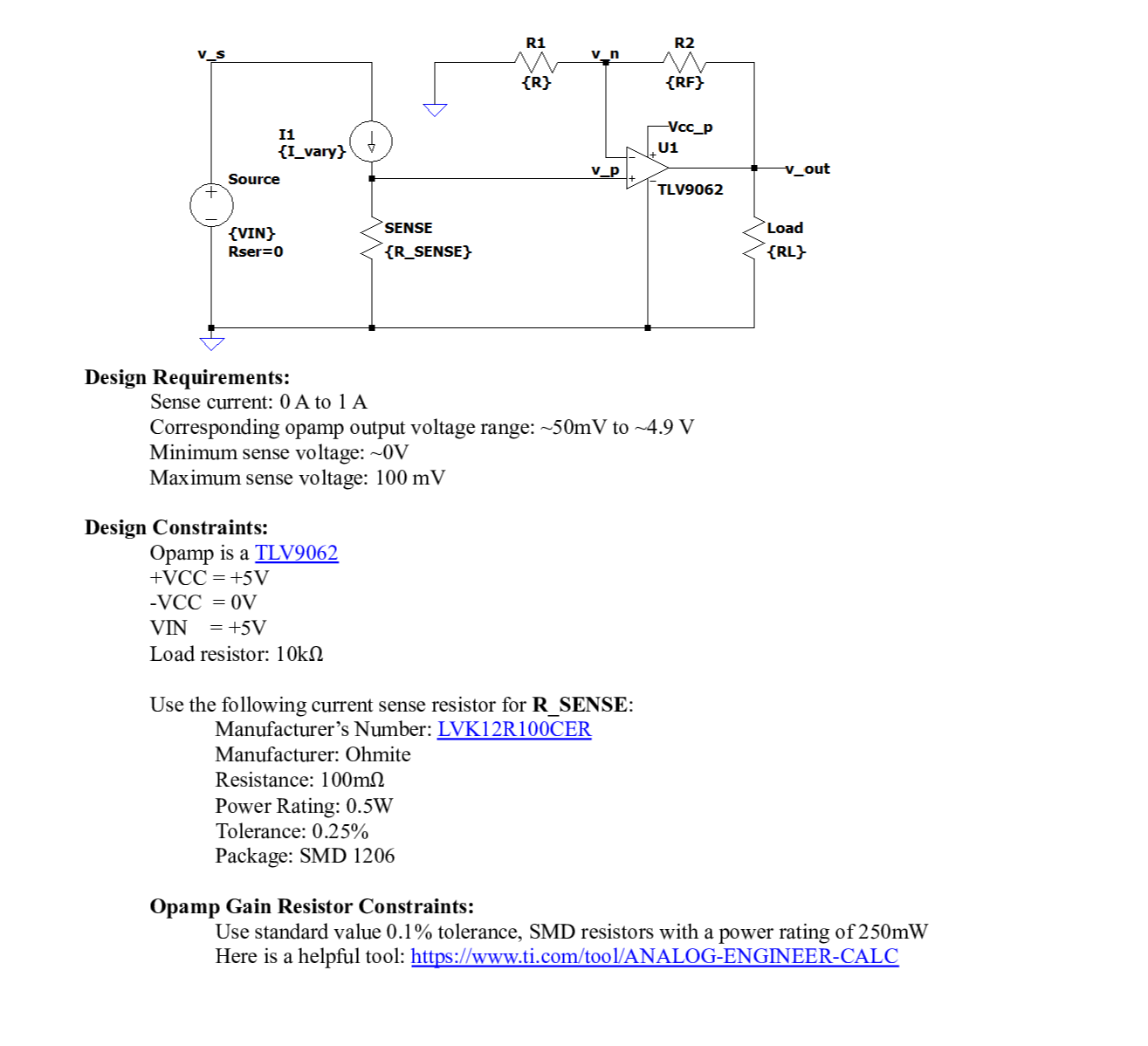

Use the following circuit to meet the design requirements listed below while adhering to the given design constraints presented by the circuit and listed in the design constraints section. Determine

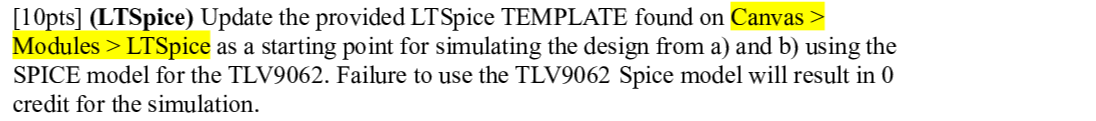

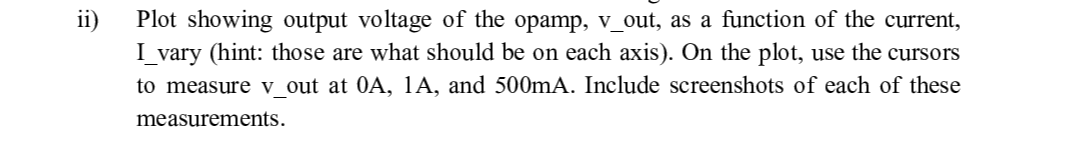

the gain of the opamp, k, in (V/V), where k is the following: k=\frac{V_{\text {OUT, MAX }}}{V_{\text {SENSE, MAX }}} b) [5pts] To achieve the gain found in a), choose resistors values for R and RF. Provide the following information for your chosen real gain resistors: Manufacturer: Resistance: Power Rating: Tolerance: Package: Mouser URL: [10pts] (LTSpice) Update the provided LTSpice TEMPLATE found on Canvas >Modules > LTSpice as a starting point for simulating the design from a) and b) using the SPICE model for the TLV9062. Failure to use the TLV9062 Spice model will result in 0credit for the simulation. Submit a screenshot of the entire LTSpice simulation set up, don't include the i)entire LTSpice model description for the TLV9062, but part of the model should be included in the screenshot to show that it is being used. See Plot showing output voltage of the opamp, v_out, as a function of the current,I vary (hint: those are what should be on each axis). On the plot, use the cursor sii)to measure v_out at 0A, 1A, and 500mA. Include screenshots of each of these measurements.
