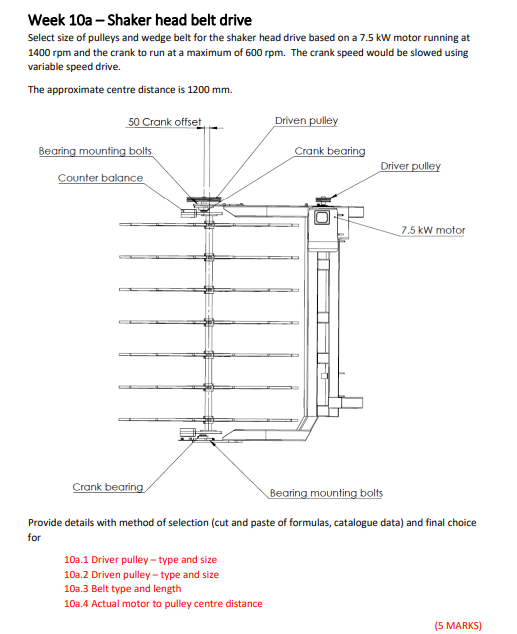

Week 10a - Shaker head belt drive

Select size of pulleys and wedge belt for the shaker head drive based on a 7.5 kW motor running at

1400 rpm and the crank to run at a maximum of 600 rpm. The crank speed would be slowed using

variable speed drive.

The approximate centre distance is 1200 mm.

50 Crank offset

Bearing mounting bolts

Counter balance

Crank bearing

Driven pulley

10a.1 Driver pulley-type and size

10a.2 Driven pulley-type and size

10a.3 Belt type and length

10a.4 Actual motor to pulley centre distance

Crank bearing

Driver pulley

7.5 kW motor

Bearing mounting bolts

Provide details with method of selection (cut and paste of formulas, catalogue data) and final choice

for

(5 MARKS)
