Question

Which of the following statements are trueabout Programmable Logic Arrays (PLAS)? In a PLA the decoder used by a ROM is replacedwith an OR array. In a PLA the decoder

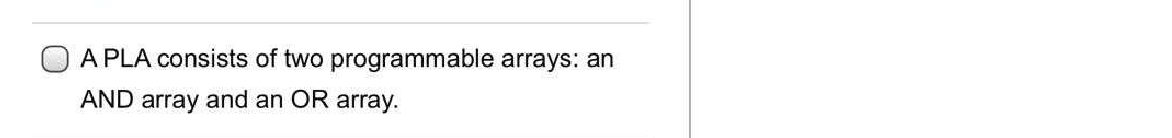

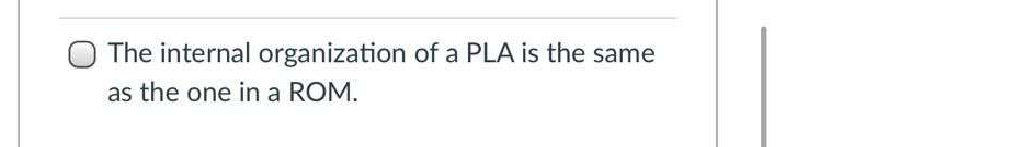

used by a ROM is replaced with an AND array. A PLA consists of two programmable arrays: an AND array and an OR array. The internal organization of a PLA is the sameas the one in a ROM.
