Question
The roof system of an office building consists of a 4 in. thick reinforced concrete slab resting on four steel beams (A = 16.2 in.2), which are supported by two steel girders (A = 42.9 in.2). The girders, in turn, are supported by four columns, as shown in Fig. P2.8. Determine the dead loads acting on the girder AG.
Question image 1Question image 2
View Answer
Try AI Generated Solution

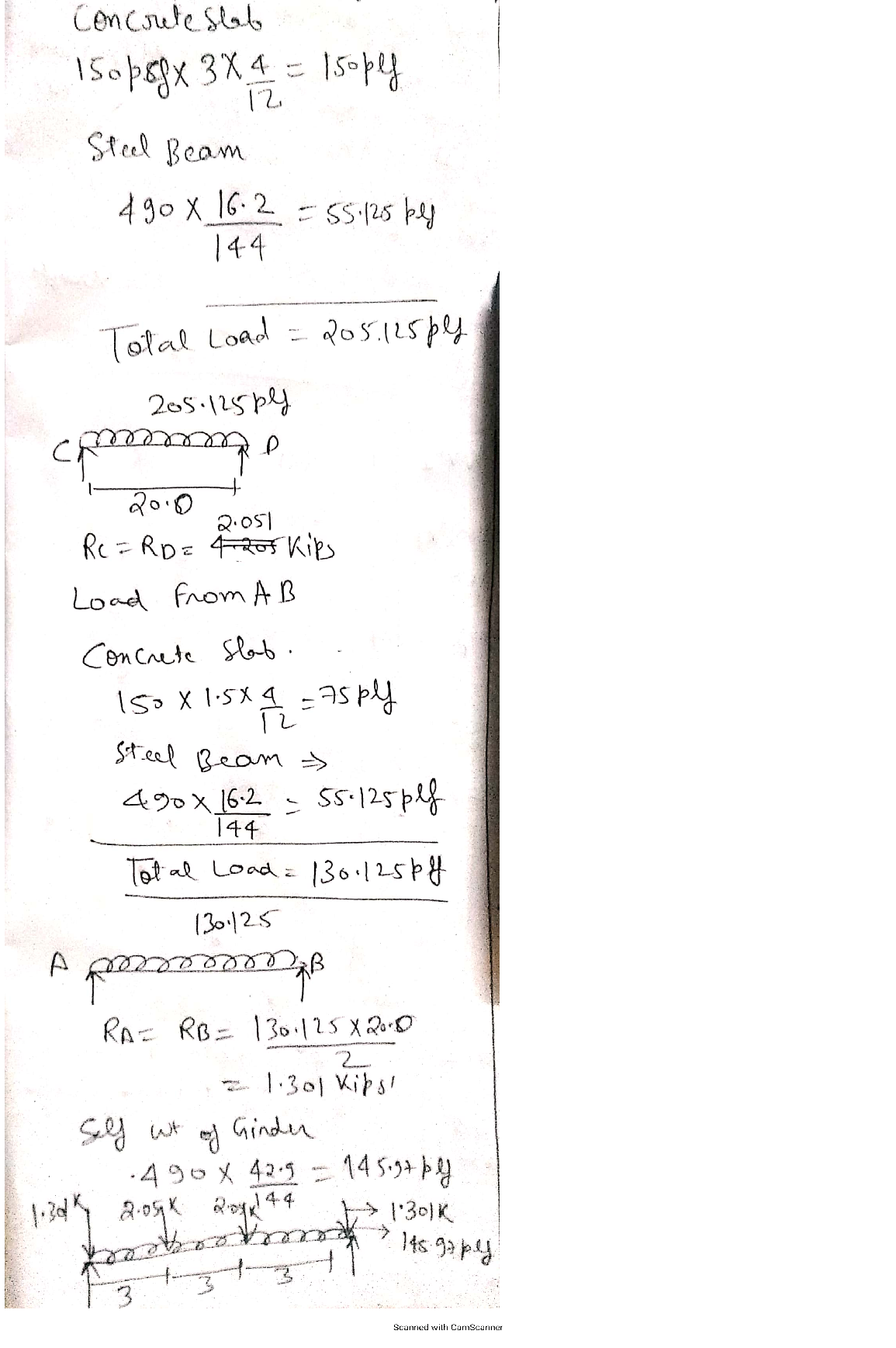

Answer

Answer image 1

Get solved by expert tutor

Not the answer you're looking for? Let our experts create a unique solution for you
